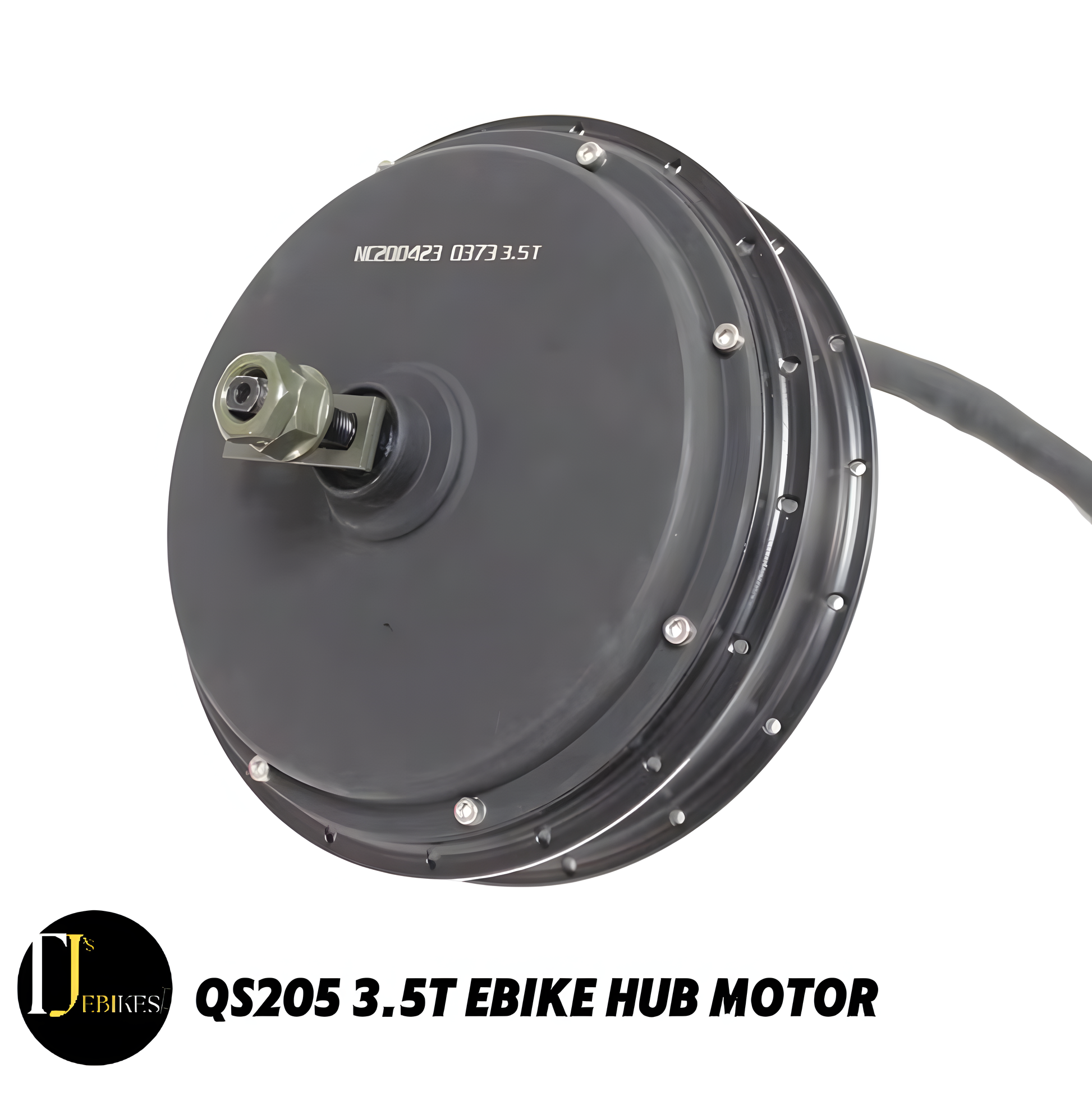

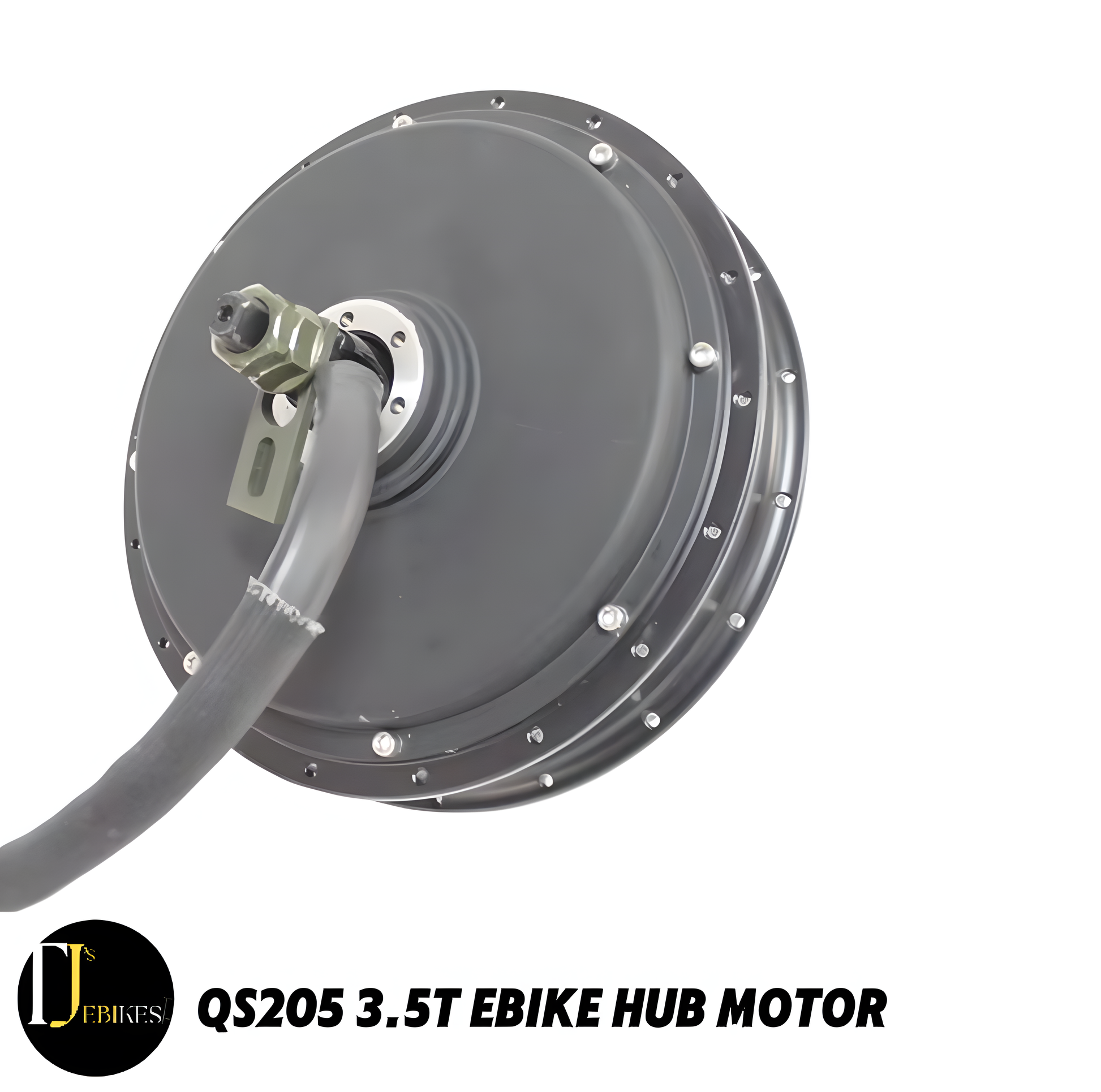

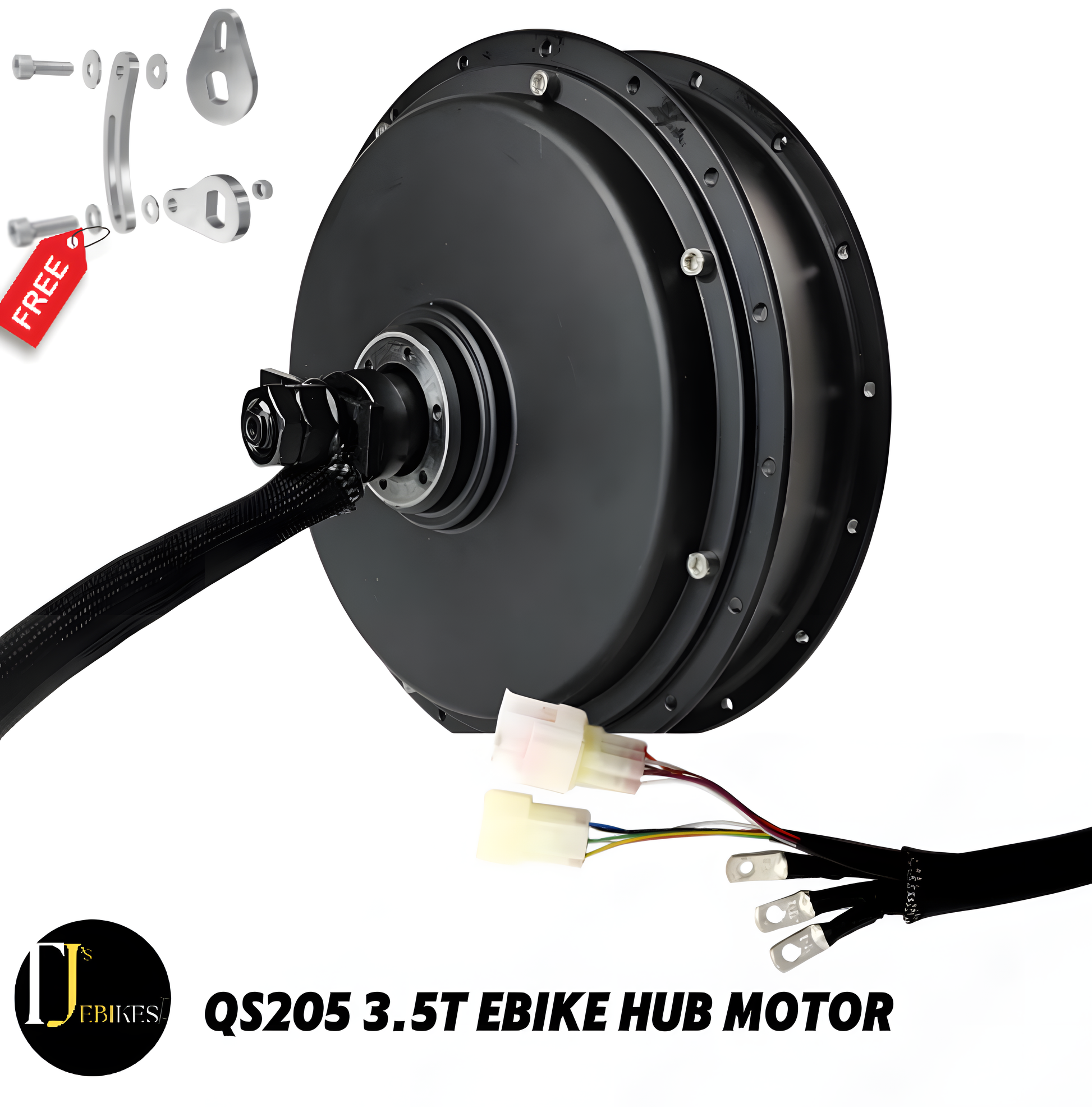

QS205 Hub Motor 72V 3.5T EBike Hub Motor 50H

 BLDC Permanent Magnet Outer Rotor Direct Drive Spoke Hub Motor
2. Power: 50mm magnet height, 16 pole paris.
36 X Spoke Hole OD 4.2mm or Dual Spoke 3.4 & 4.2mm.
3. Speed: Winding 24*5T, 650RPM at 72V, equal to 9.03kV (optional)
4. Designed to match with E-bike Disc brakes PCD6*44mm (not include Brake Disc),
14mm English thread for single-speed Freewheel (not include freewheel), drop-outs/Rear Bridge Clamping Width (150mm)
5. Two Halls with waterproof connectors, 10mm² Phase wire (not include insulation)
6. Thermic Probe: KTY 83/122 (optional)
7. Waterproof grade: IP54
8. Efficiency: 90.8%
9. Stronger configuration--high grade magnet, more cooper, bear more Ampere.
10. 10mm Axle flat

PRODUCT NUMBER 213
