Motor Specification:
Magnet Width: 45mm
Magnet Quantity: 23 pairs (46 pcs)
Magnet Width: 45mm
Dual Hall Sensor (One for spare use)
High Motor Efficiency: 84.8%
Max Torque: 80.3 N.M.
Max Rotation: About 642RPM
Rated Rotation: About 600RPM
Max speed：75-80km/h
Weight: 10kgs
Wheel dropout: 135mm(Single Speed Freewheel)
Controller Advantage:
1.Programmable Sine Wave Controller which support big current and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2.Motor torque ripple is reduced to minimum through FOC, more smooth and comfortable
3.Universal Input Voltage Range: 48V/60V/72V
4.Work with or without display

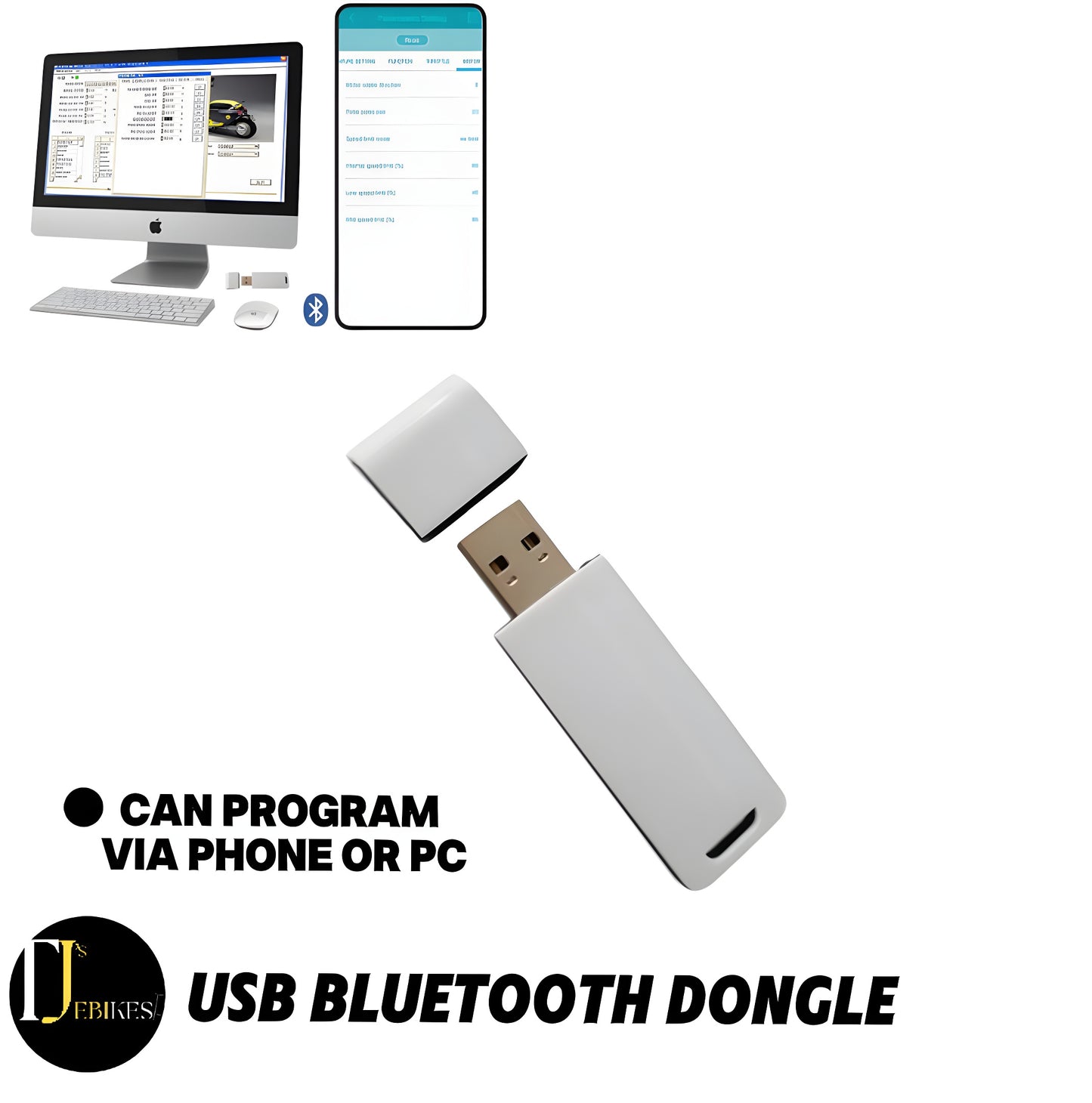

5.Parameter setting via Mobile Phone App or Computer
6.All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection

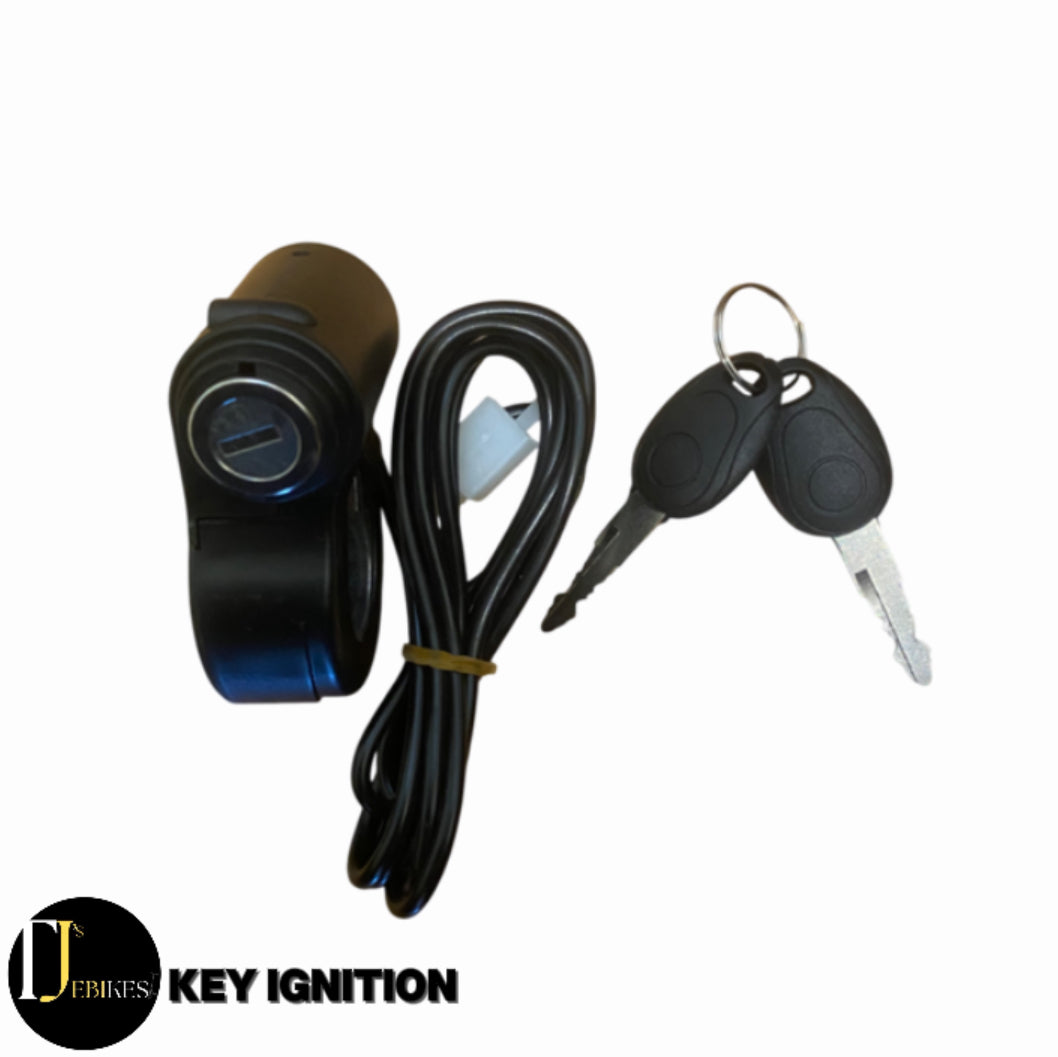

7.Multi functions: Smart match with different motor, 5-speed level for throttle and PAS, Speed limit, reverse, anti-thief, Regenerative Braking, Electric Braking, Keyless start and etc.
8.Best heat sinking with thicker Heat sink Aluminium Plate
9.Anodized Aluminium Controller Case against scratch

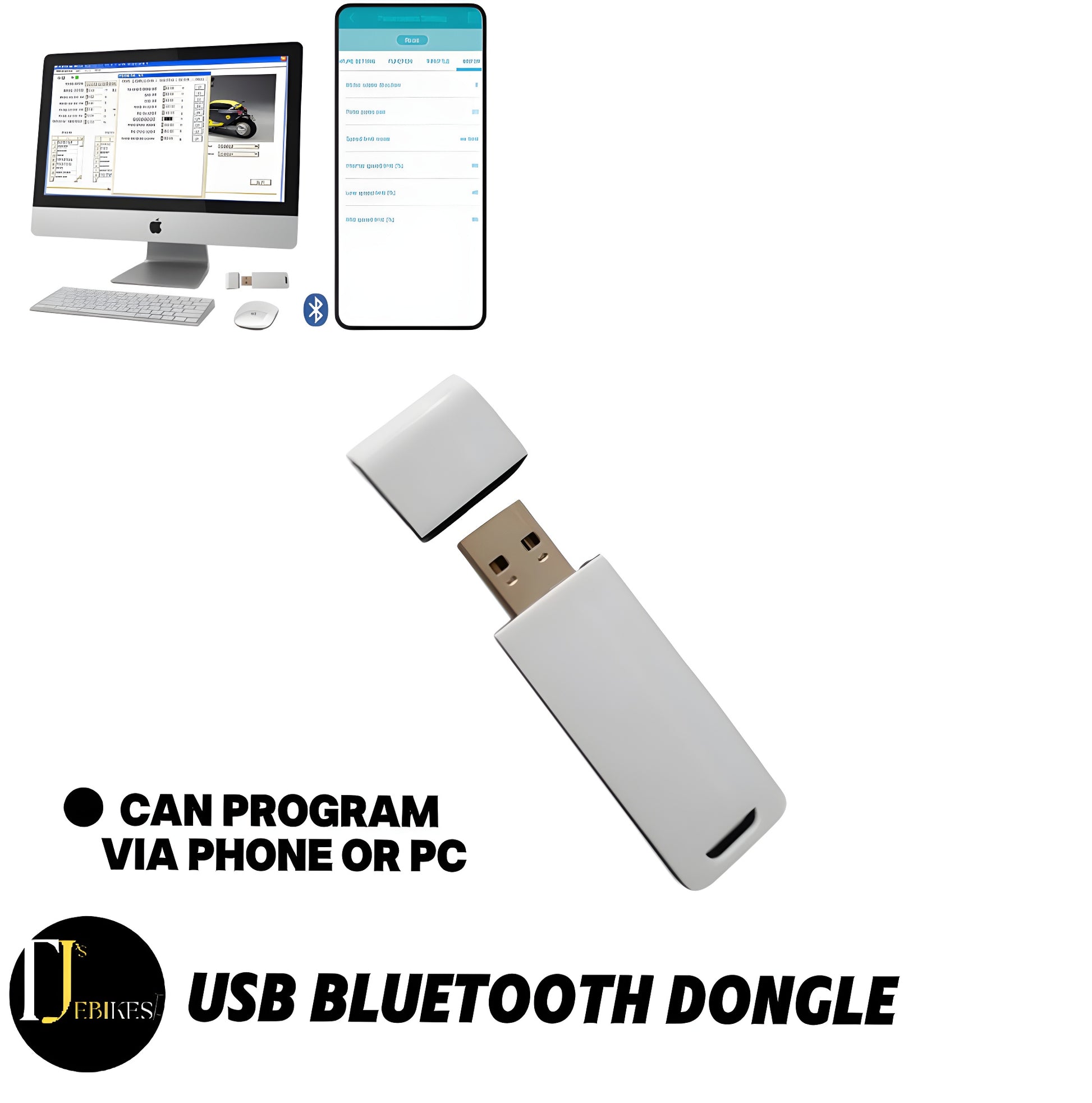

10.Mobile phone App can communicate with the controller to modify parameter

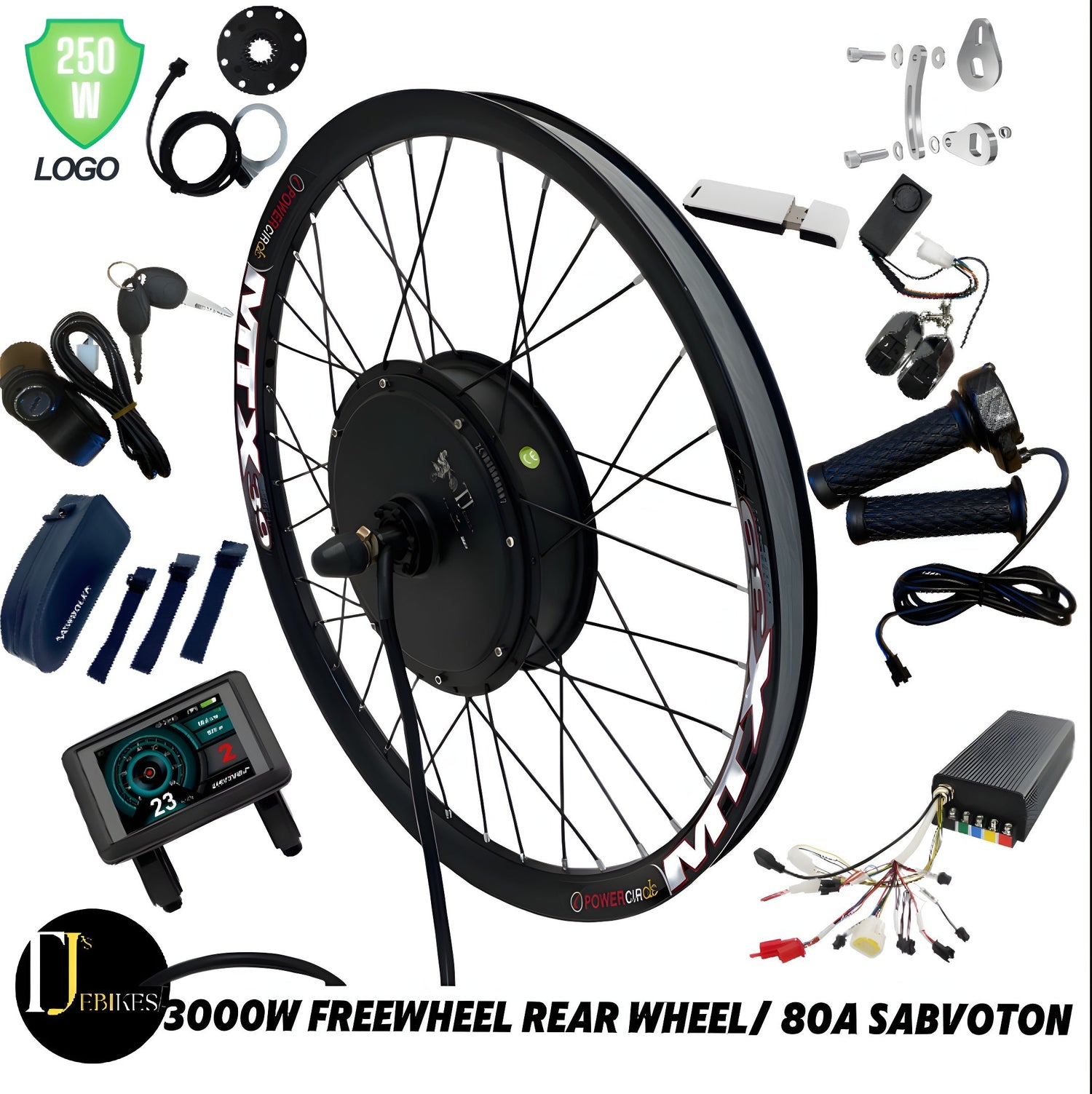

Parts Including:

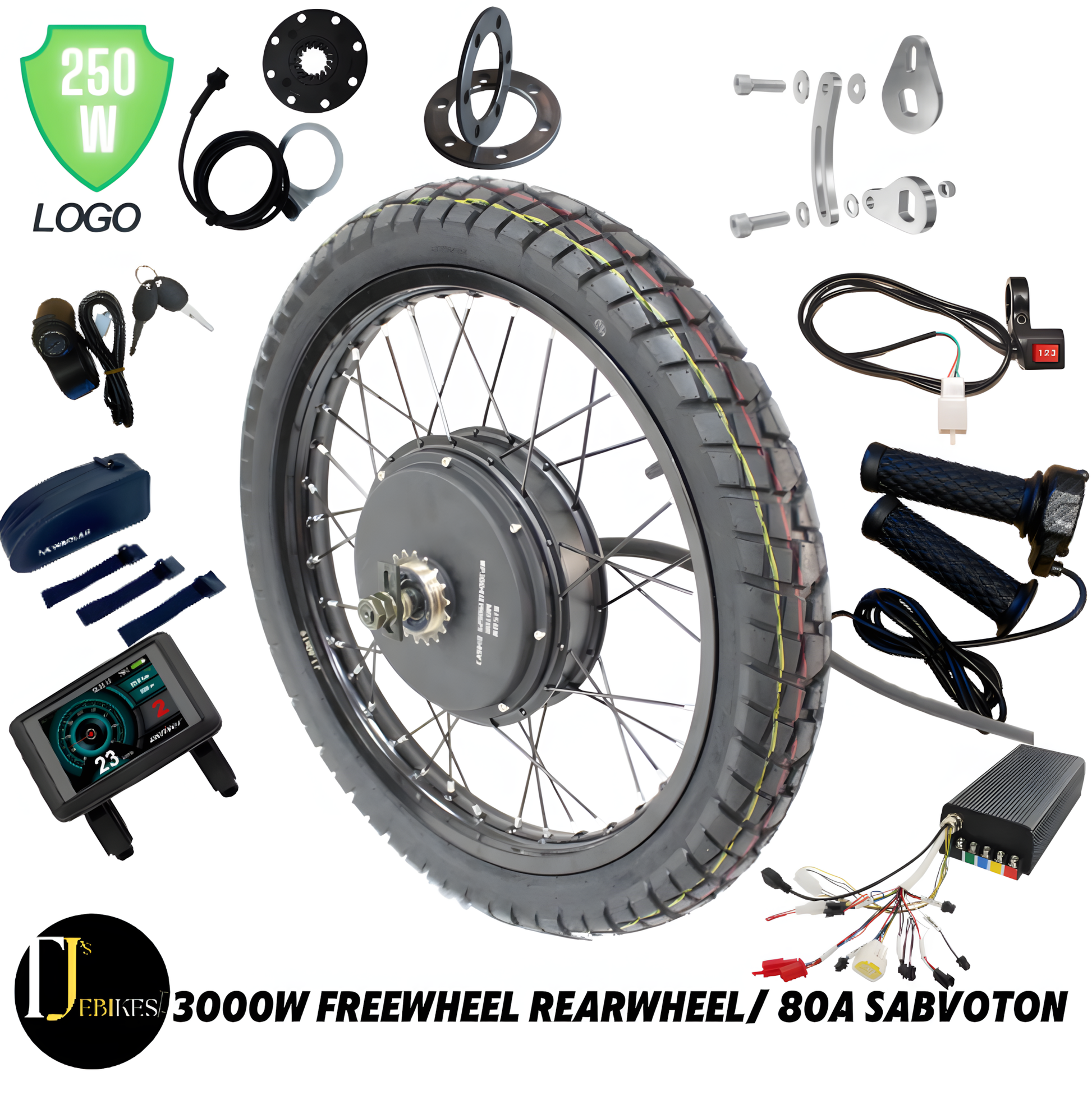

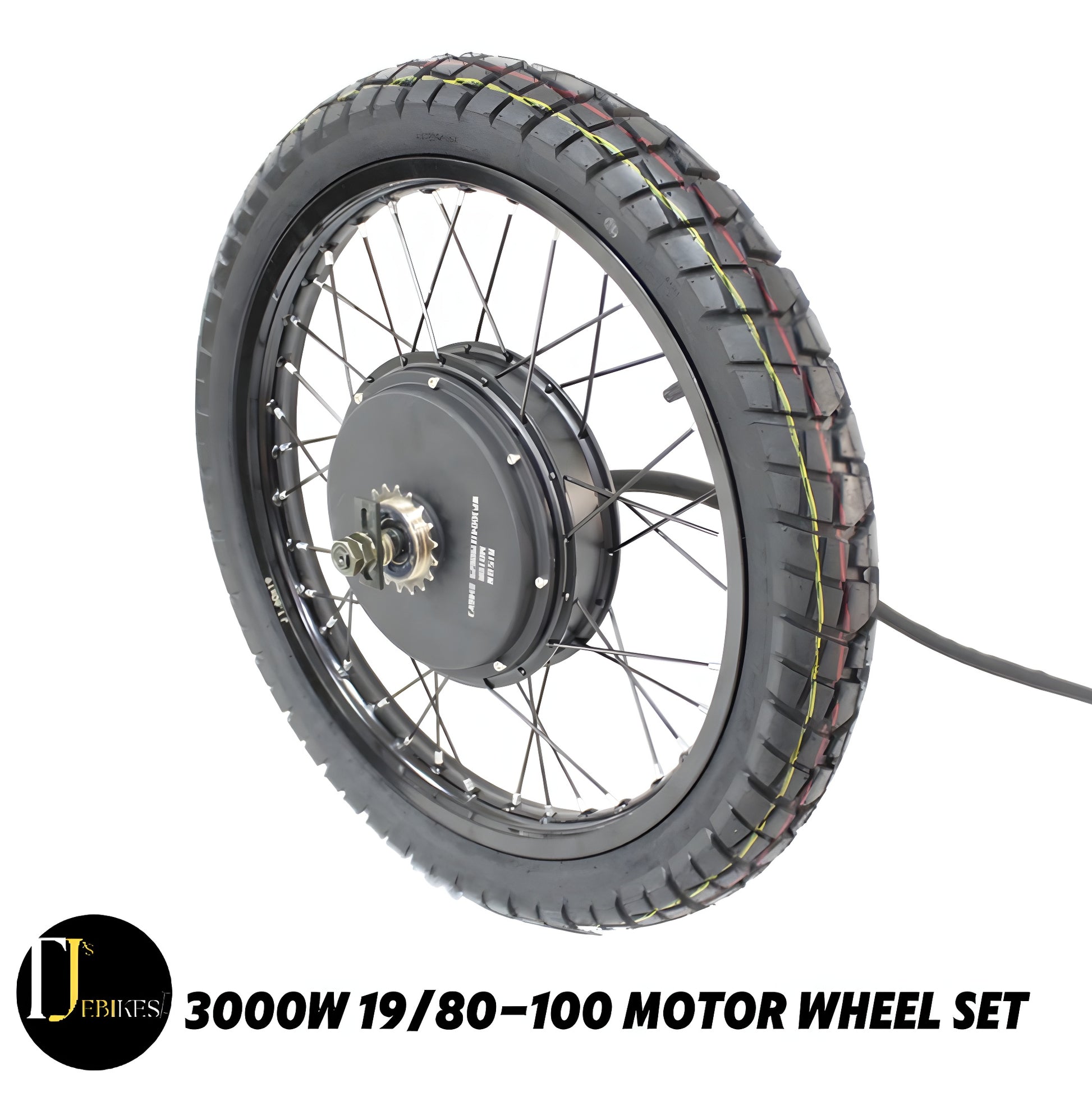

1. 72V 3000W Rear Motor Wheel with Single Speed Freewheel (Without Tire and Tube)

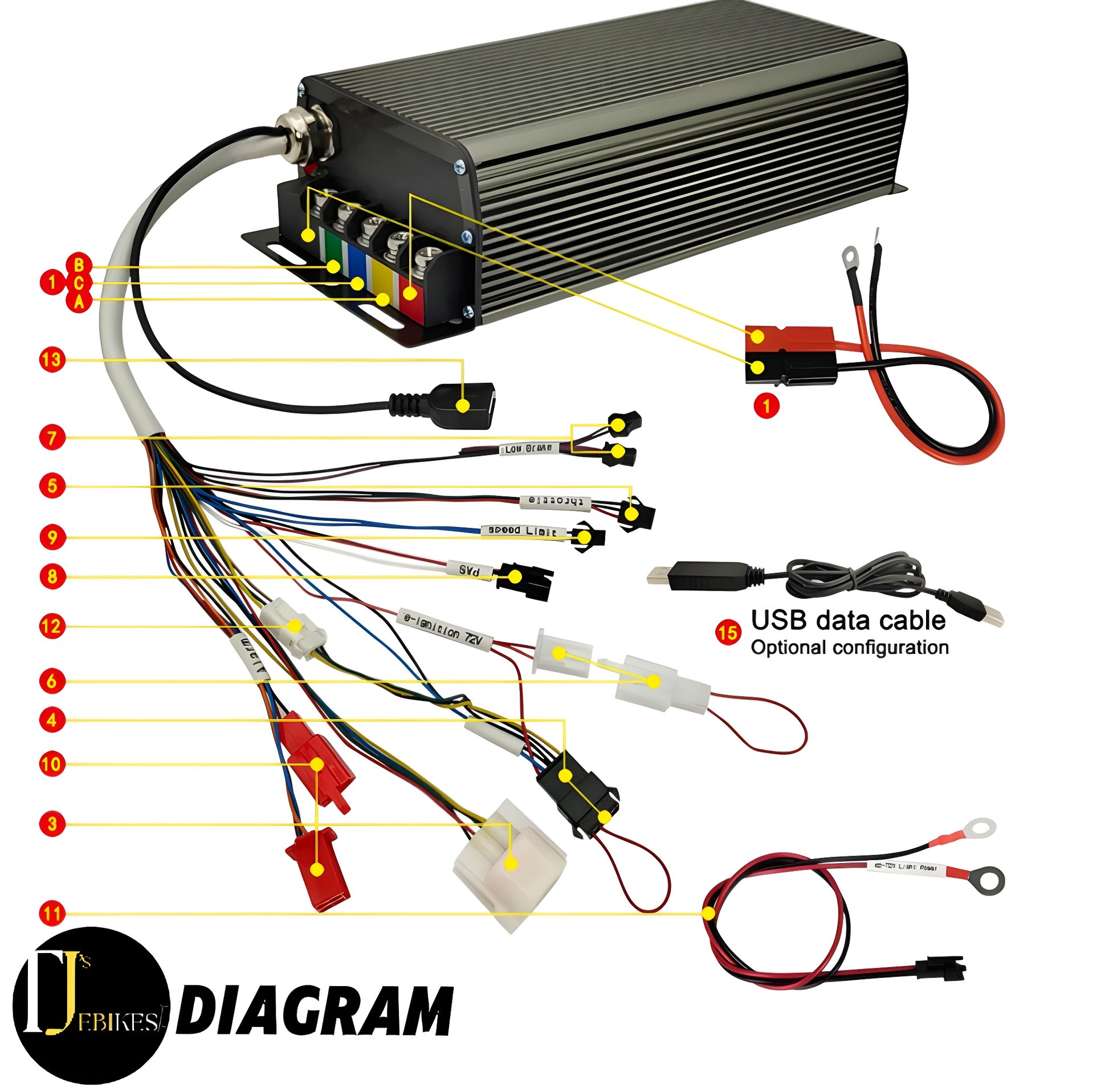

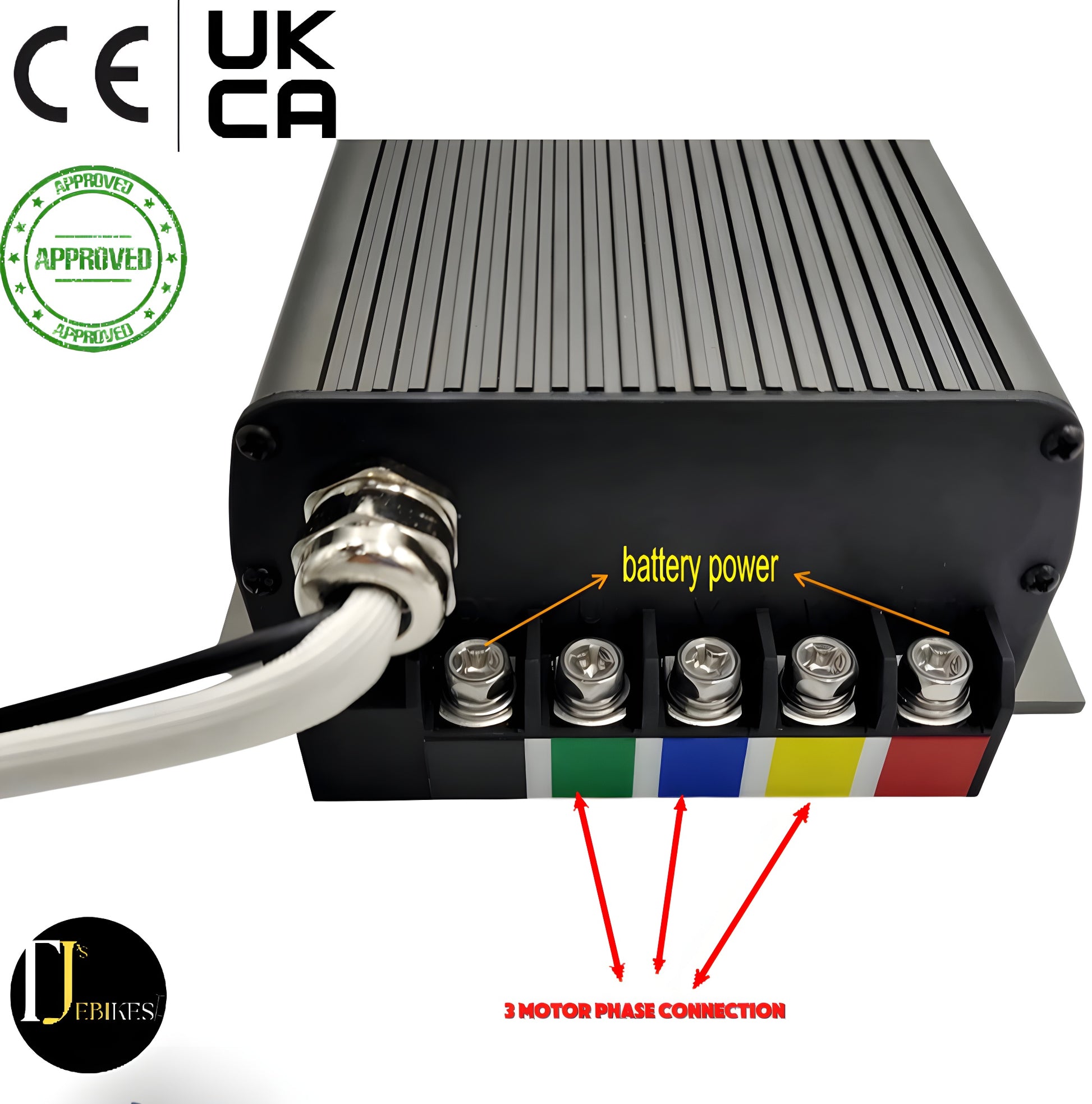

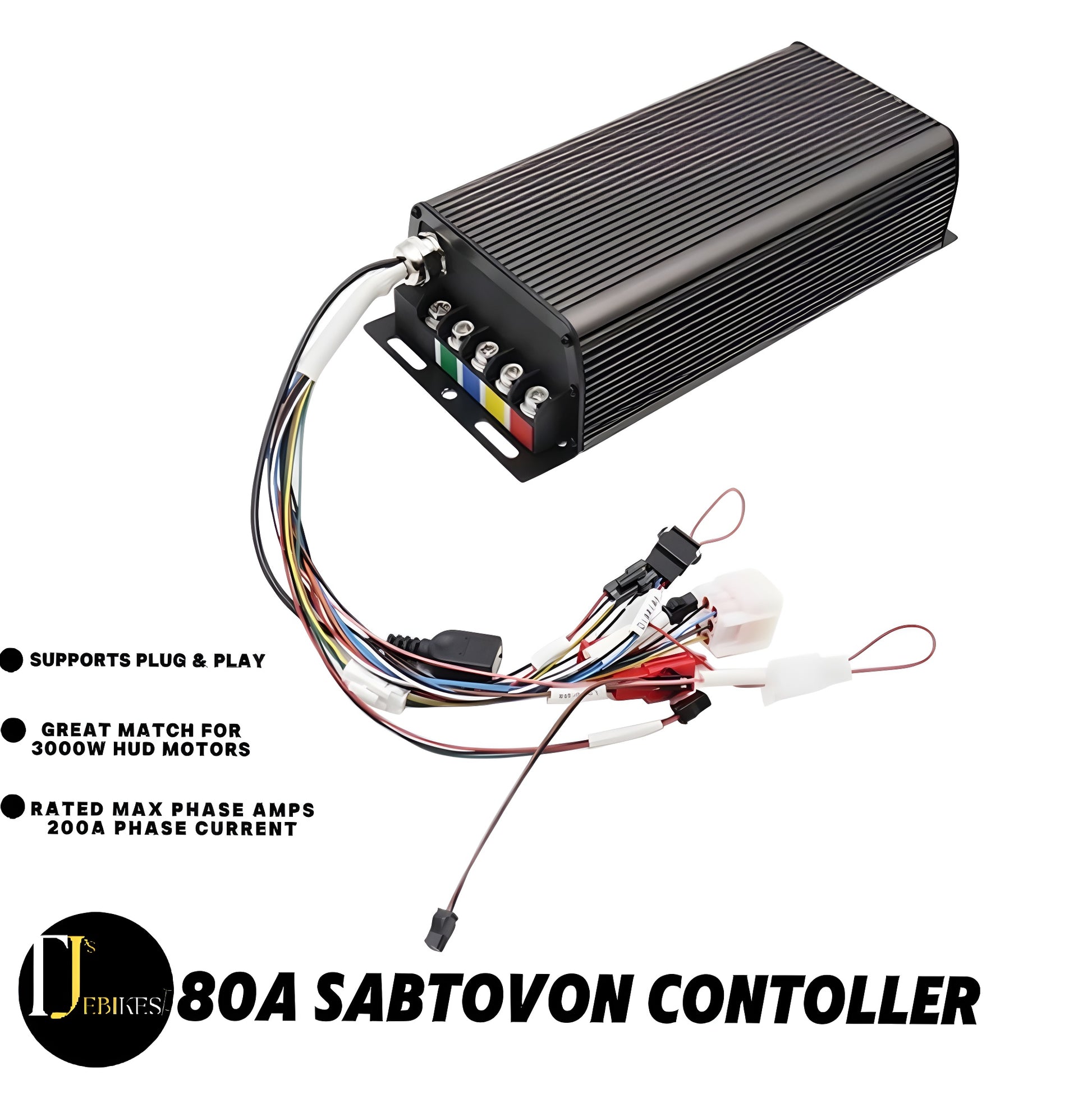

2. Sabvoton 48V/60V/72V Universal 80A Sine Wave Intelligent Programmable Controller

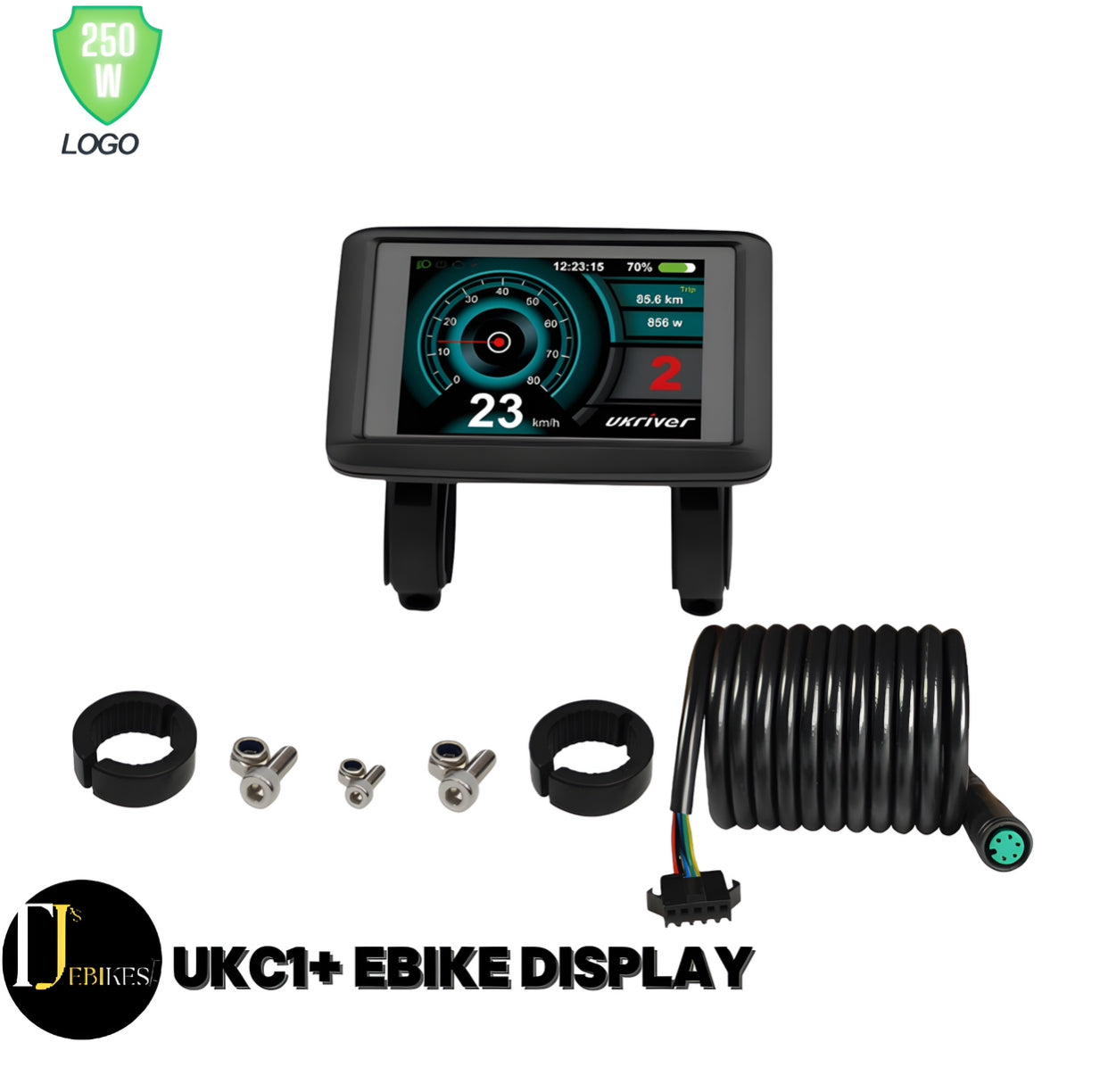

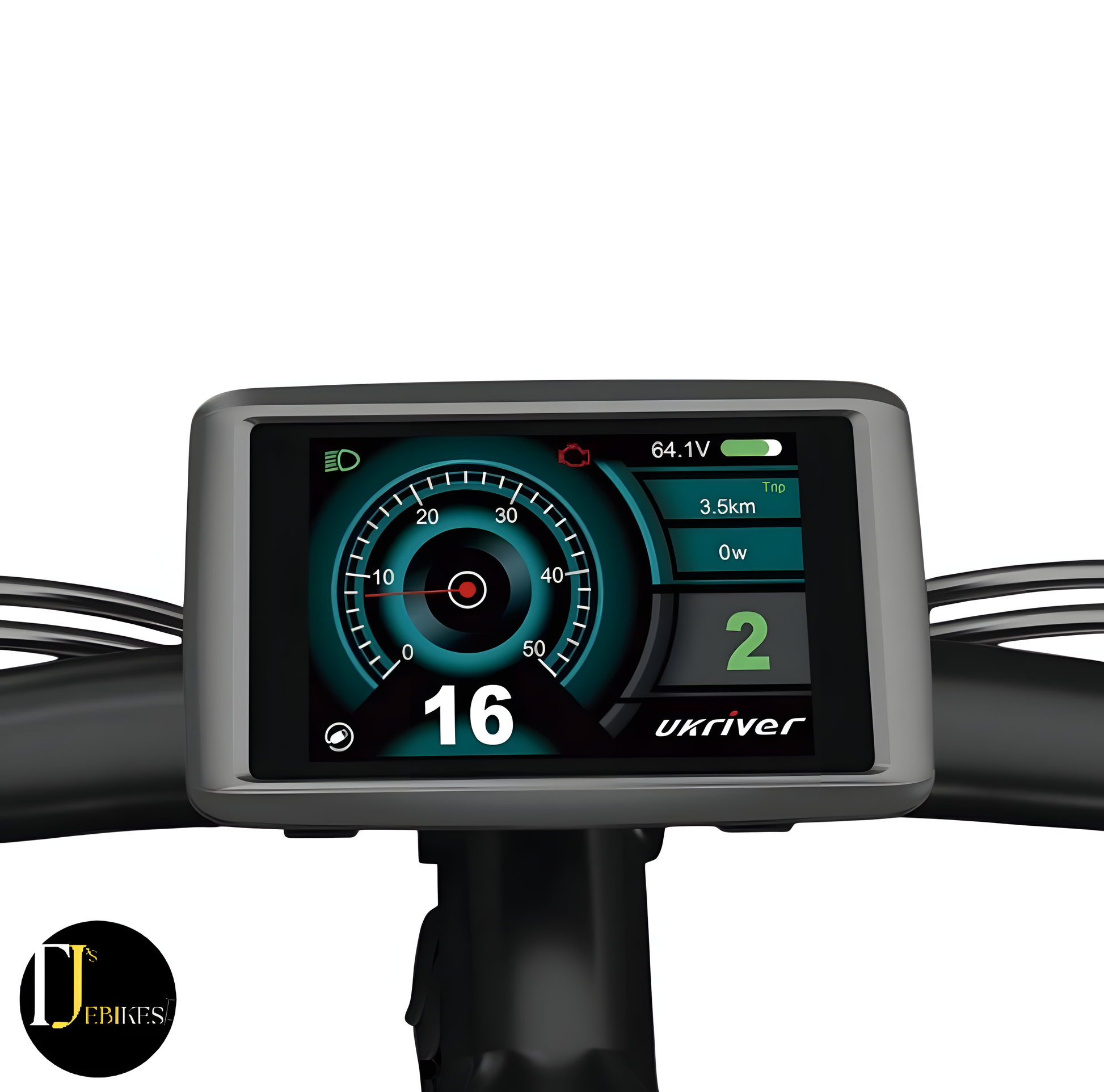

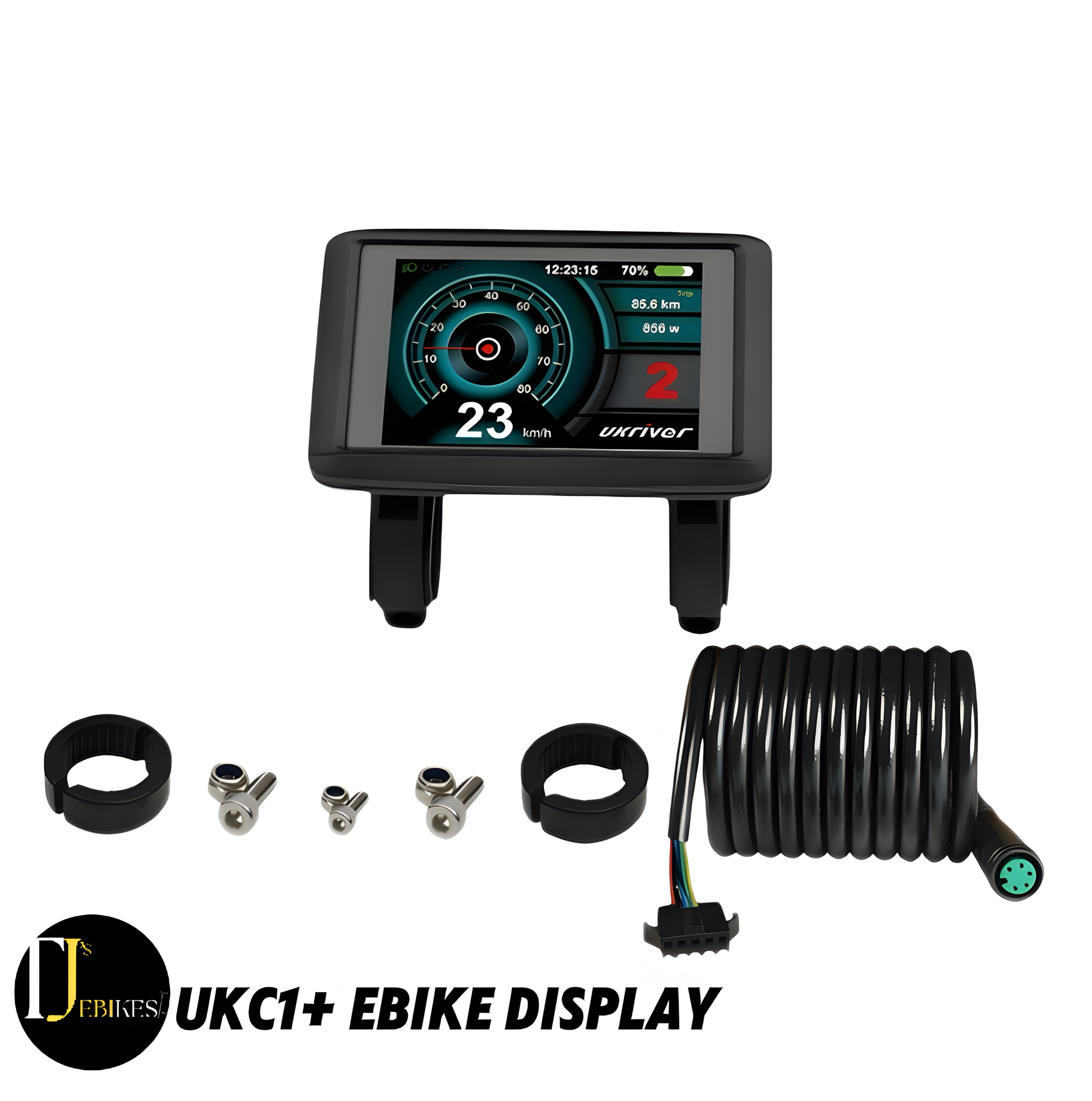

3. UKC1+ Color Display
4. SurRon Style Twist Throttle
5. Hydraulic Disc Brakes
6. PAS

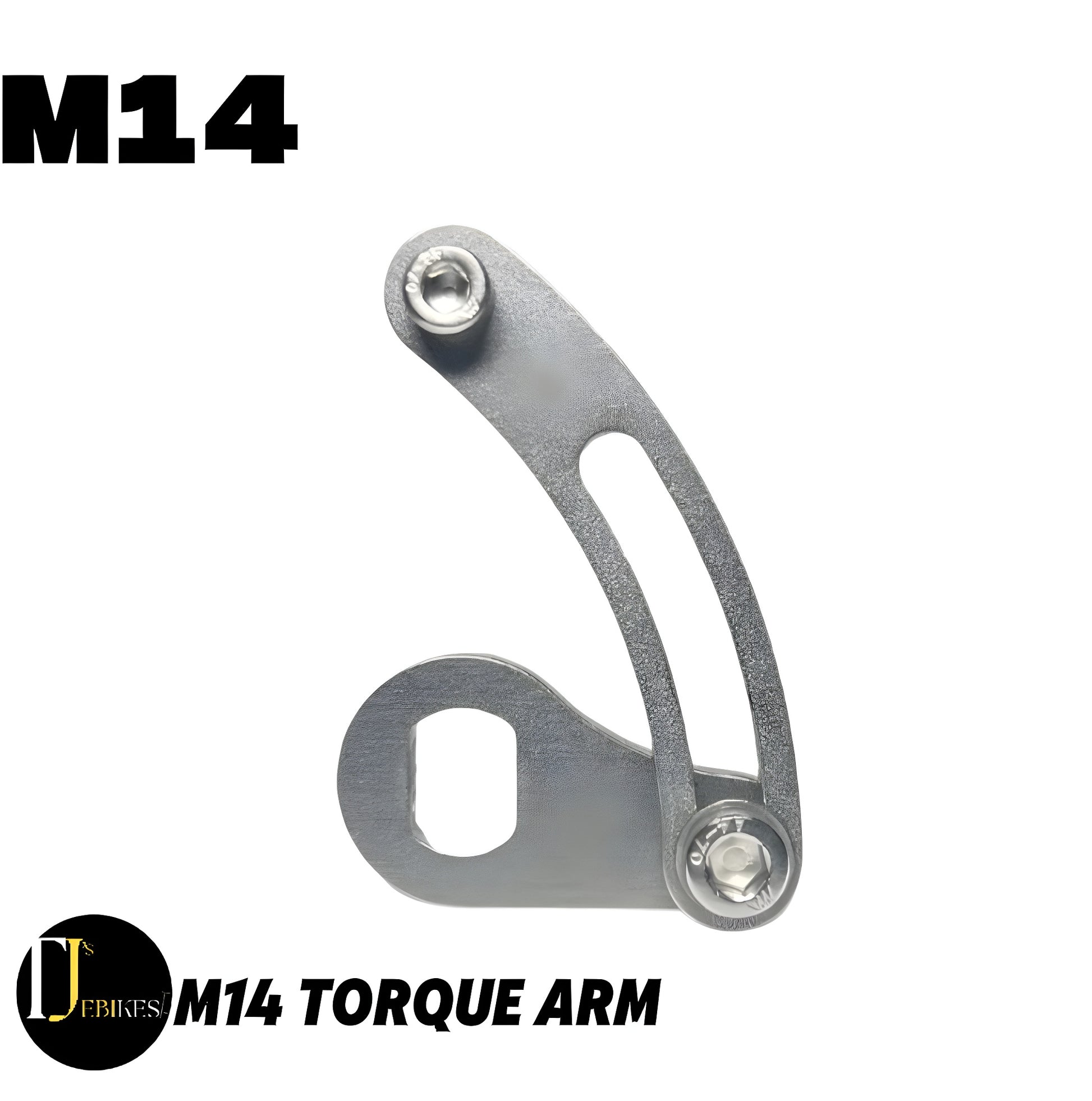

7. Torque Arm
8. Alarm device
9. CONTOLLER WIRE BAG
10.SPEED SWITCH
