CYC Heavy-Duty 5-Speed eBike Drivetrain Upgrade Kit – Reinforced Cassette, AlexRims 5SB Hub, Microshift Advent Clutch Shifting & KMC e9 Turbo EPT Chain – Built for CYC Mid-Drive Systems

System Compatibility

• All CYC mid-drive motor systems

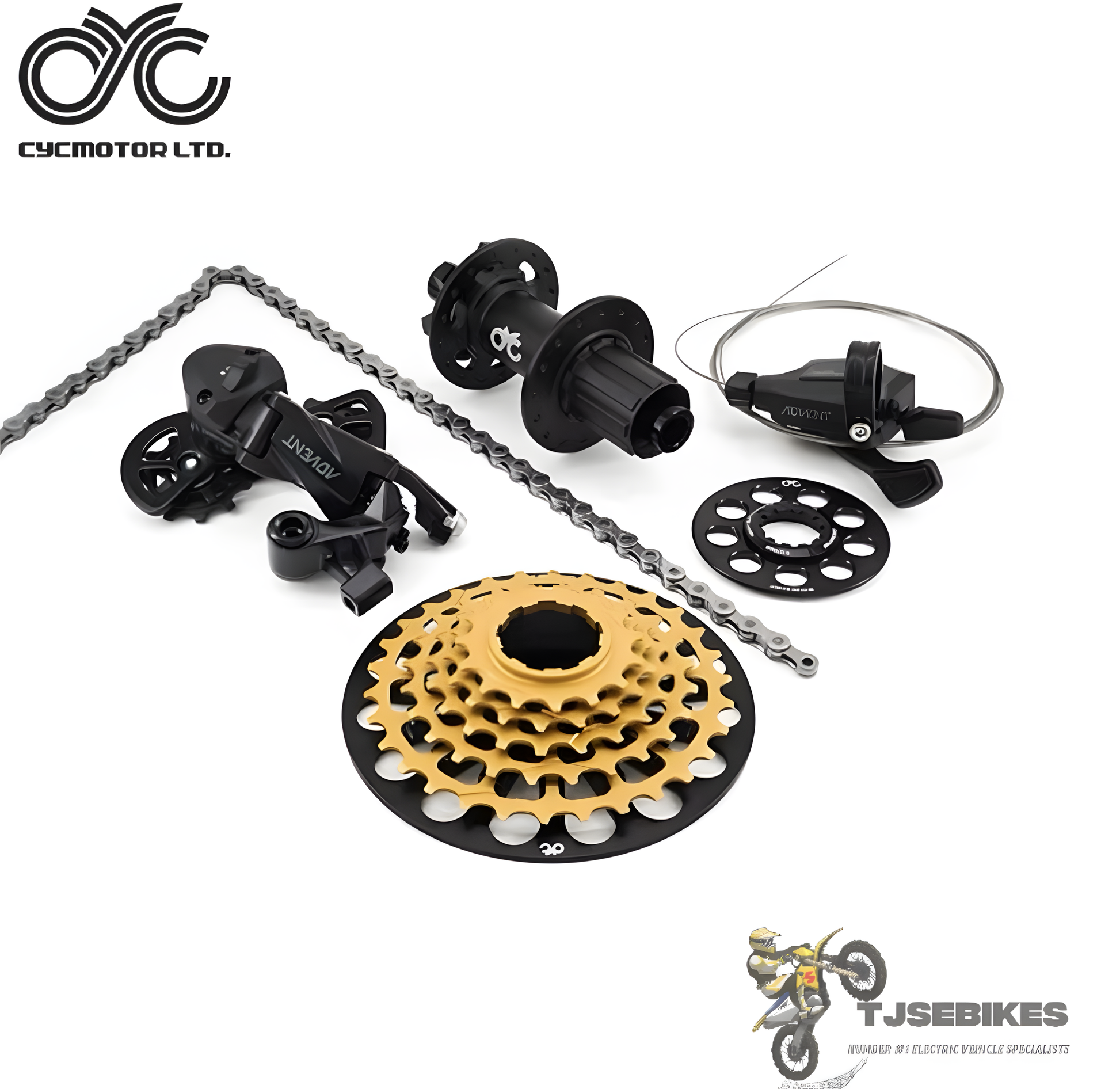

Inclusions

• Heavy-Duty 5-Speed Cassette
• e-Bike Rear Hub
• Microshift Advent Shifter and Rear Derailleur
• KMC e9 Turbo EPT Chain

Specifications

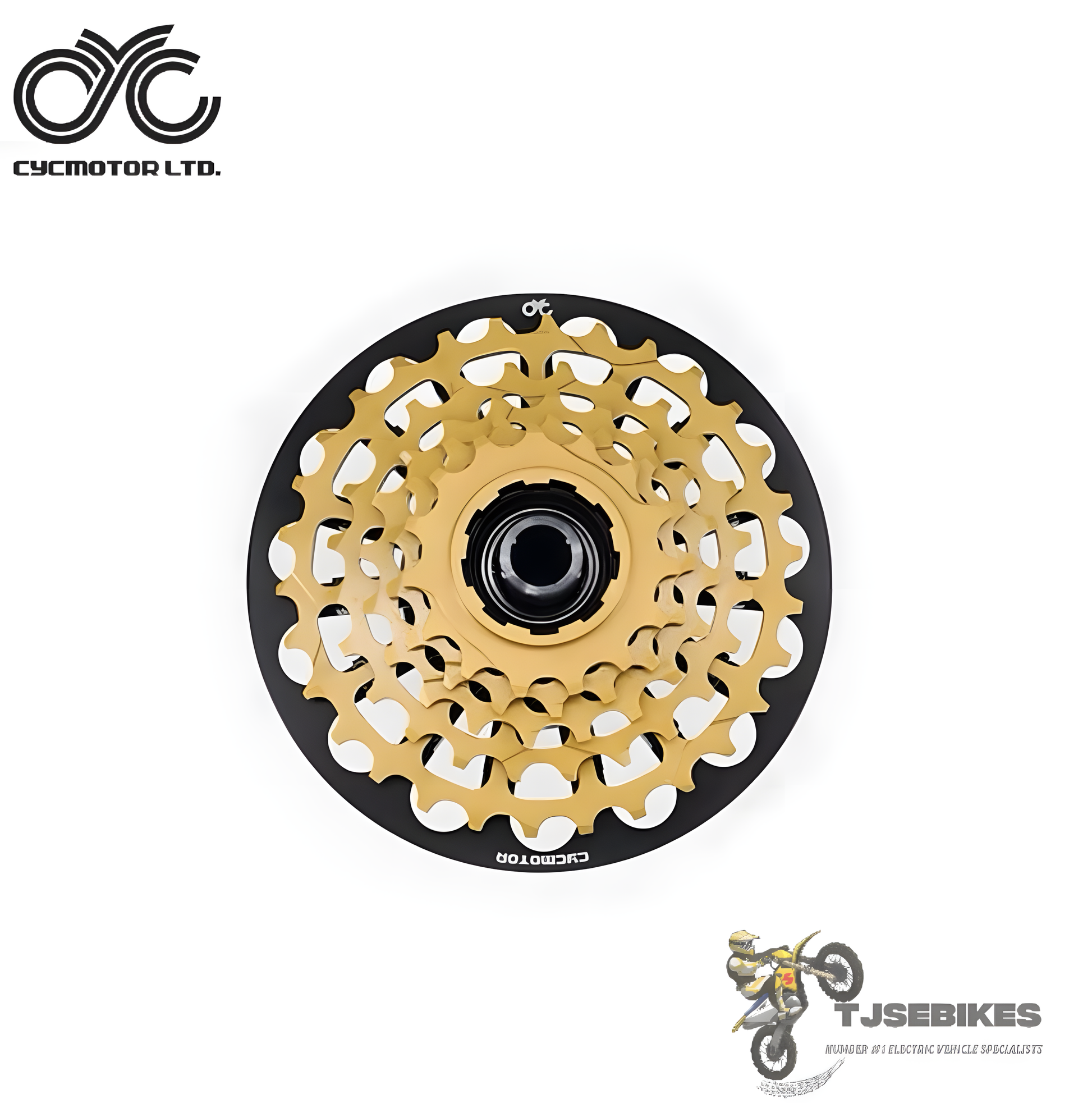

• Cassette

  Heavy Duty 5-speed Cassette
  Speed: 5-speed
  Gearing: 15-30T; 15-17-20-24-30T
  Material: Chromoly steel, Aluminium 7075
  Optimum/ operating chainline:

  51.7mm centre (20T)
  60.7mm final cog (15T)
  42.7mm 1st cog (30T)

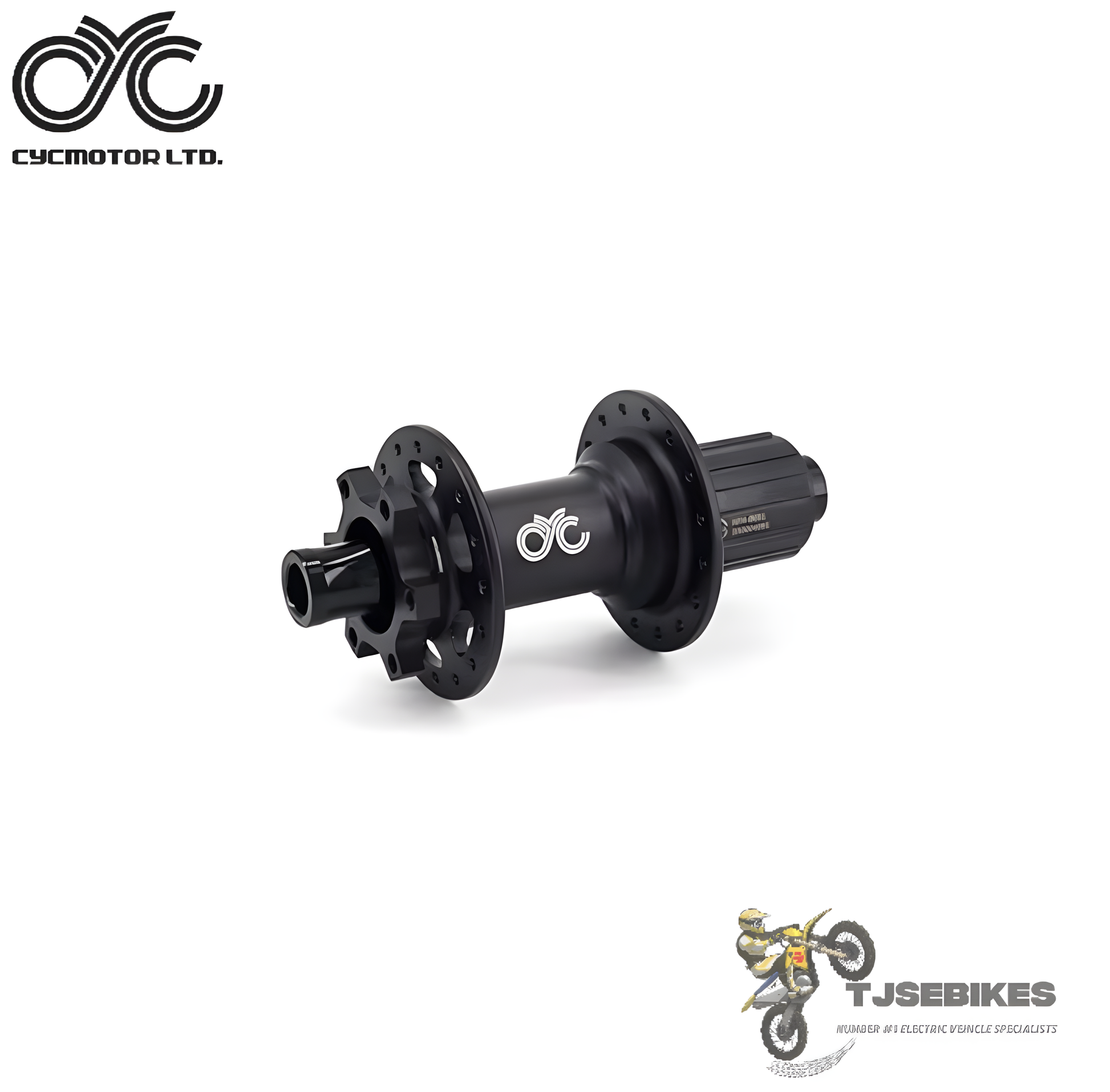

• Hub

  AlexRims e-Bike Rear Hub
  Model: 5SB
  Engagement Points: 24 (15 degrees)
  Freehub Type: Rachet-type, Steel Shimano HG (3SB IMPEL 24T)
  Axle Type: Steel thru-axle
  Spoke Configuration: J-Bend
  Brake Compatibility: 6-Bolt Disc
  Axle Dimensions:

  12mm x 148mm OLD
  or 150/ 157mm OLD


  Spoke Count: 32H
  Finish: Sanded Black


• Shifter

  Microshift Advent Trail Pro Shifter
  Single Click
  Side: Right
  Clamp Material: Aluminum


• Deraileur

  Microshift Advent Super short cage clutch derailleur
  Model: RD-M6195S
  Cage Material: Steel
  Outer Link Material: Aluminum


• Chain

  KMC e9 Turbo EPT chain
  EPT (Anti-rust)
  1/2"x11/128"x136 Links



PRODUCT NUMBER 257

If you place a order on a working day it will be packed and sent out with in 2-3weeks

WHATSAPP:0759822828

NO RETURNS OR REFUNDS
