Technical Data of the Controller:
Type:30A Sine Wave Controller

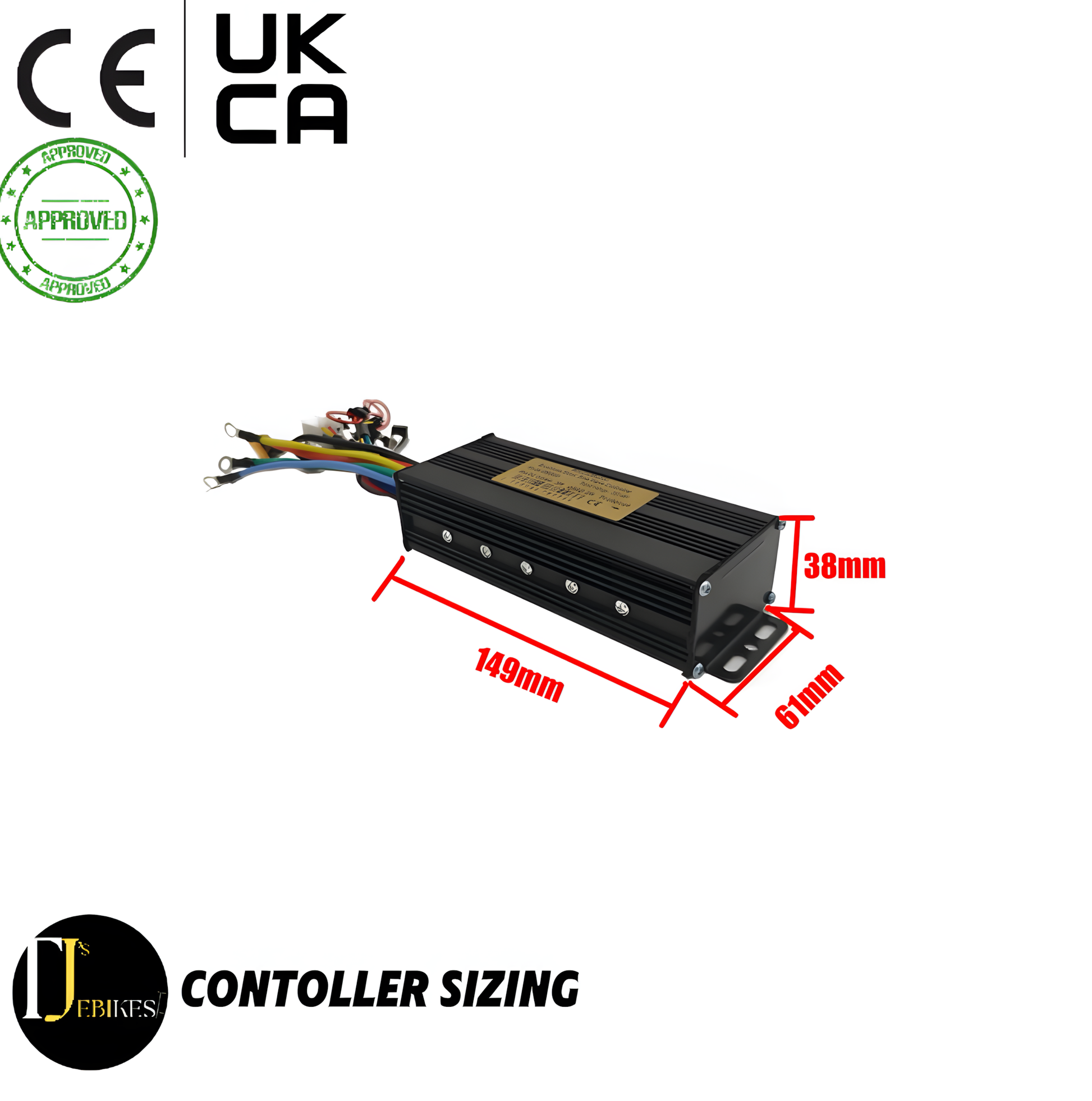

Size(L*W*H):About 150*60*38mm
Rated Power::750W
Protocol: OMD Nr.2
Mosfet:Big 12 Mosfets
Brakes:Low-L evel
Rated Voltage:DC 36/48V/52V
Compatible with motors with or without Hall
With motor forward and reverse learning function
Waterproof Grade: IP65
Advantage:
1. Sine Wave Controller which support 3-mode (hall sensor mode, non-hall mode, self-learning) and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2. Universal Input Voltage Range: 48V/52V/60V/72V
3. Work with or without display
4. Parameter setting via display
5. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
6. Multi functions: Work with hall sensor mode or non-hall mode, smart match with different motor, 3/5/9-speed level for throttle and PAS, Current limit, Speed limit, Reverse, Push Assistant, Anti-thief, Regenerative Braking (Can set different level: Off, Standard, Weak, Strong), Speed detecting (Magnet quantity simulated or internal speed sensor) and etc.
7. Best heat sinking with Aluminium Case
8. Black anodized Aluminium Controller Case against scratch
PRODUCT NUMBER 221
